4DPop Macros

4DPop Macros adds a rich set of macro-commands to the 4D method editor. Using macro-commands saves a lot of time during method entry.

Once the component is loaded, the macros are installed automatically — no manual setup required — and become available directly from the code editor.

Highlights

• Declarations…: analyses the code, deduces the type — including 4D.x / cs.x classes — of parameters and local variables, lets you review and adjust each type in an interactive dialog, and writes the declarations using the modern var keyword, inserted right before each variable's first use.
• Beautifier…: a configurable code formatter.
• Comments: intelligent comment / uncomment (single-line, block or intra-line).
• Compiler directive…: wraps a selection with //%W- … //%W+ directives to selectively disable compiler warnings.
• Special paste…: pastes clipboard content with transformations (string, comments, HTML, regex pattern, pathname, JSON-to-code, tokenized…).
• Copy and replace, Duplicate & comment, Copy with tokens and several everyday helpers.
• Most actions come with a keyboard shortcut, a predictive-input trigger, and an entry in the method editor's macro menu.

Prerequisites: component dependencies

4DPop Macros relies on the following 4D components. When installed through the Dependencies Manager (recommended), they are resolved automatically:

Installation

Recommended (4D v21+): Project dependencies

Use the 4D Dependencies Manager UI to install the component:

1. Open your project in 4D (v21+).
2. Open the Dependencies Manager.
3. Add a GitHub dependency.
4. Enter the GitHub repository address: vdelachaux/4DPop-Macros.
5. Choose the version you want (for example latest).
6. Apply changes and let 4D update project dependencies.

No manual JSON editing is required, and the dependencies listed above are pulled in automatically.

Usage

When the component is loaded, the macros are automatically installed and available in the method editor. They can be invoked:

• By clicking on the Macros button in the method editor toolbar.
• By double-clicking on their name in one of the footer lists of the method editor.
• For some of them (see the "Menu" column below) in the "Method" menu or the sub-menu of the "Insert macro" item of the editor's contextual menu.
• For some, by a keyboard shortcut indicated in the "Shortcut" column below.
• For some, in the predictive input window. The triggering text is indicated in the "Input" column below.

For more information on the use and operation of macros, you can refer to the Creating and using macros page of the 4D documentation.

Here are the macros I use every day

That's why they have an associated shortcut 😉

*Shortcuts may be displayed incorrectly in the macro menu because they are interpreted. e.g. ⌘ ⌥ c will be displayed ⌘ ©

Declaration…

This tool operate on the selected text of the frontmost method (or on the whole method if there is no selection*). It extract the parameters and local variables, then tries to discover their type and displays the list of elements found, allowing you to change their type. Once validated, each declaration is inserted just before the variable's first use. The declaration tool is able to parse the C_xxx directives and replace it using the var keyword.

*Not yet for a class method, so it's best to work with the selection for now.

⚠️ The declaration macro no longer supports binary databases: it targets project mode only and always writes declarations with the var keyword.

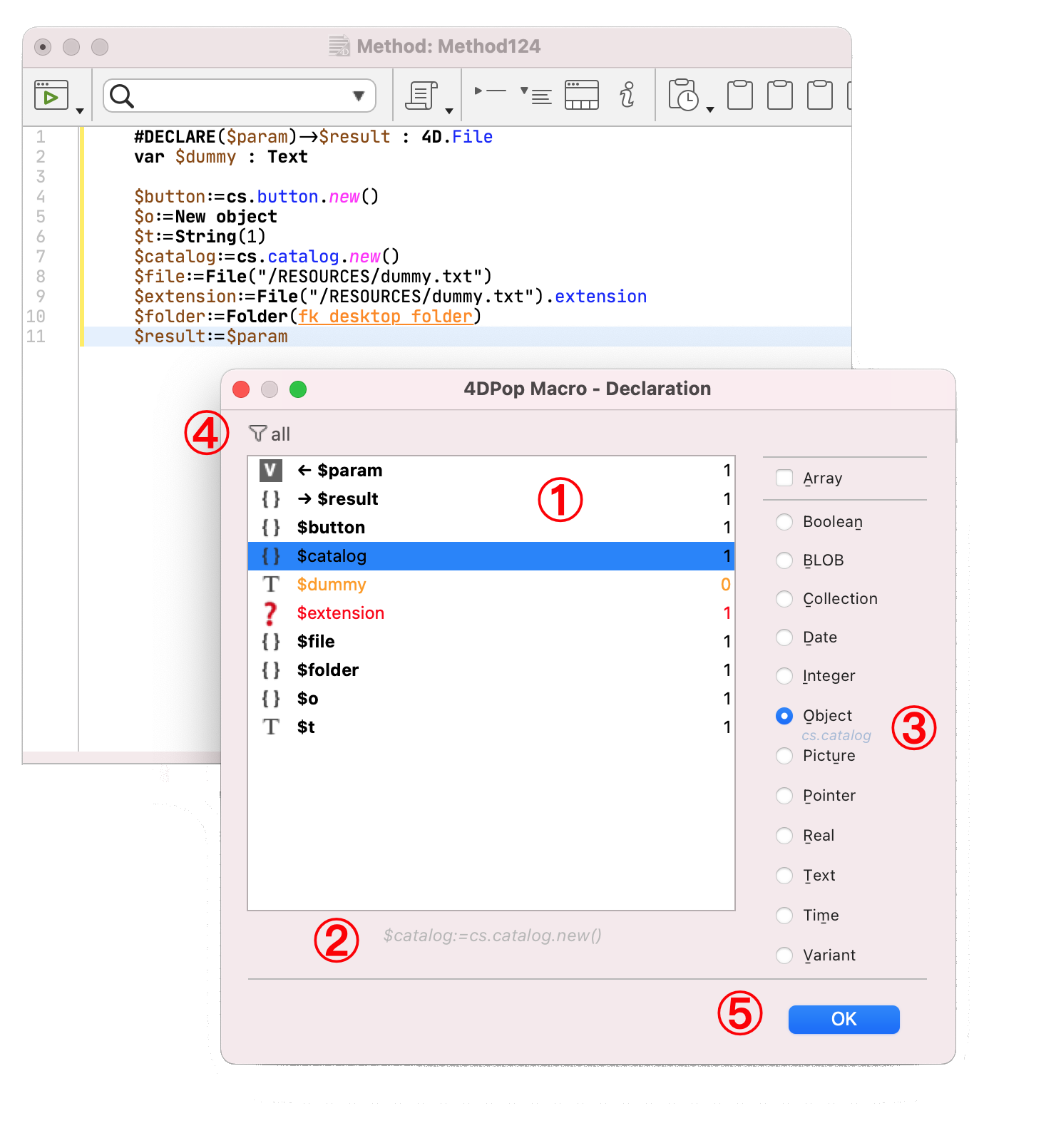

• ① The list displays first the parameters, then the local variables.

  • For each element, an icon represents the type deduced, and the number of uses in the analyzed code is displayed on the right.
  • The elements for which the type could not be determined are displayed in red.
  • Items that were found in a statement instruction, but are not used, are displayed in orange. They will not be included in the created directives.
  • Arrays are underlined.

• ② A relevant line of code is displayed under the list. Two radio buttons let you choose which one — and your choice is saved:

  • Deduction line (default): the line that allowed the tool to deduce the type — for example the indexed access $row[1] that reveals a Collection, or the assignment that reveals a simple type.
  • First occurrence: the first line where the element appears.

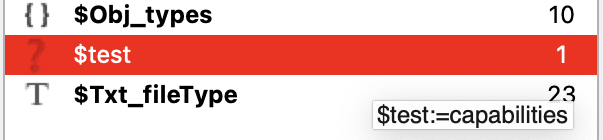

  • The first-occurrence line is also available via the tooltip.



• ③ To the right are the available types.

  • The shortcut for each type is option + the underlined letter of the label
  • When the type is Object, a class picker drop-down appears, listing the 4D classes (4D.x), Object (a plain object) and the cs.x / 4D.x classes referenced in the code, so you can type the variable precisely (e.g. 4D.File). A dedicated icon marks variables carrying a class.

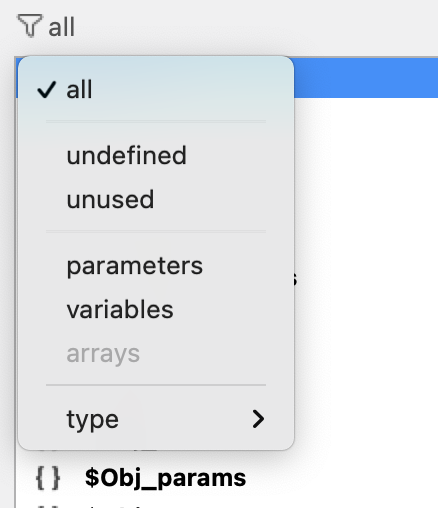

• ④ The Filter menu allows you to display only certain items.

• ⑤ If you validate, each declaration is inserted just before the variable's first use (named parameters are grouped at the top). When a variable's first use is its own assignment, the declaration and the assignment are merged on a single line (var $x : Text:=…). Variables of the same type inserted at the same place are grouped on one var line. Untyped or unused variables are ignored, and declarations made throughout the method, as well as all previous declarative blocks, are removed.
  • If you close the window with the close box, the method is not changed.

Arrays:

📍Since declaration and sizing use the same command, you can force the position of the command by using hexadecimal notation (or a variable) for the size, i.e.:

ARRAY LONGINT($array; 0x0000)
ARRAY TEXT($array; $size)

📍Two-dimensional arrays are not yet supported

👀 How the tool determine the item type?

• If a variable or a parameter is already declared (with var, C_xxx or #DECLARE). It is obvious ;-)
• If no declaration line was found, the tools try to deduce the type by analyzing the code.
  • First by detecting simple patterns: for example, $x:=10 gives the type Integer to $x, $o.key:=10gives the type Object to $o.
  • Then, using the 4D command syntax: $x:=Count parameters gives the type Integer to $x, Is picture file ($pathname) gives the type Text to $pathname.
  • And finally, if the type has still not been found using the nomenclature that you can define in the preferences.
• You can always force a type by selecting the one you want using the radio buttons on the right.

Copy and replace

This macro is often useful even if the explanation of its operation seems complex. The usage scenario is as follows:

You type some code referring to a calculated expression and then you realize that you need this expression again later on and decide to put the expression in an intermediate variable. In this case you type $maVariable:=MyExpression and then replace MyExpression with $maVariable.

With the macro:

• First type $maVariable and copy this text.
• Then, select MyExpression and call the macro: The text "MyExpression" is placed in the clipboard and replaced by the text "$maVariable".
• Then, you position the cursor after the first occurence of $myVariable and type := then paste the content of the clipboard to obtain $myVariable:=MyExpression.

Beautifier

This tool formats the selected text, or the whole method if there is no selection, by applying the rules you have defined in the preferences.

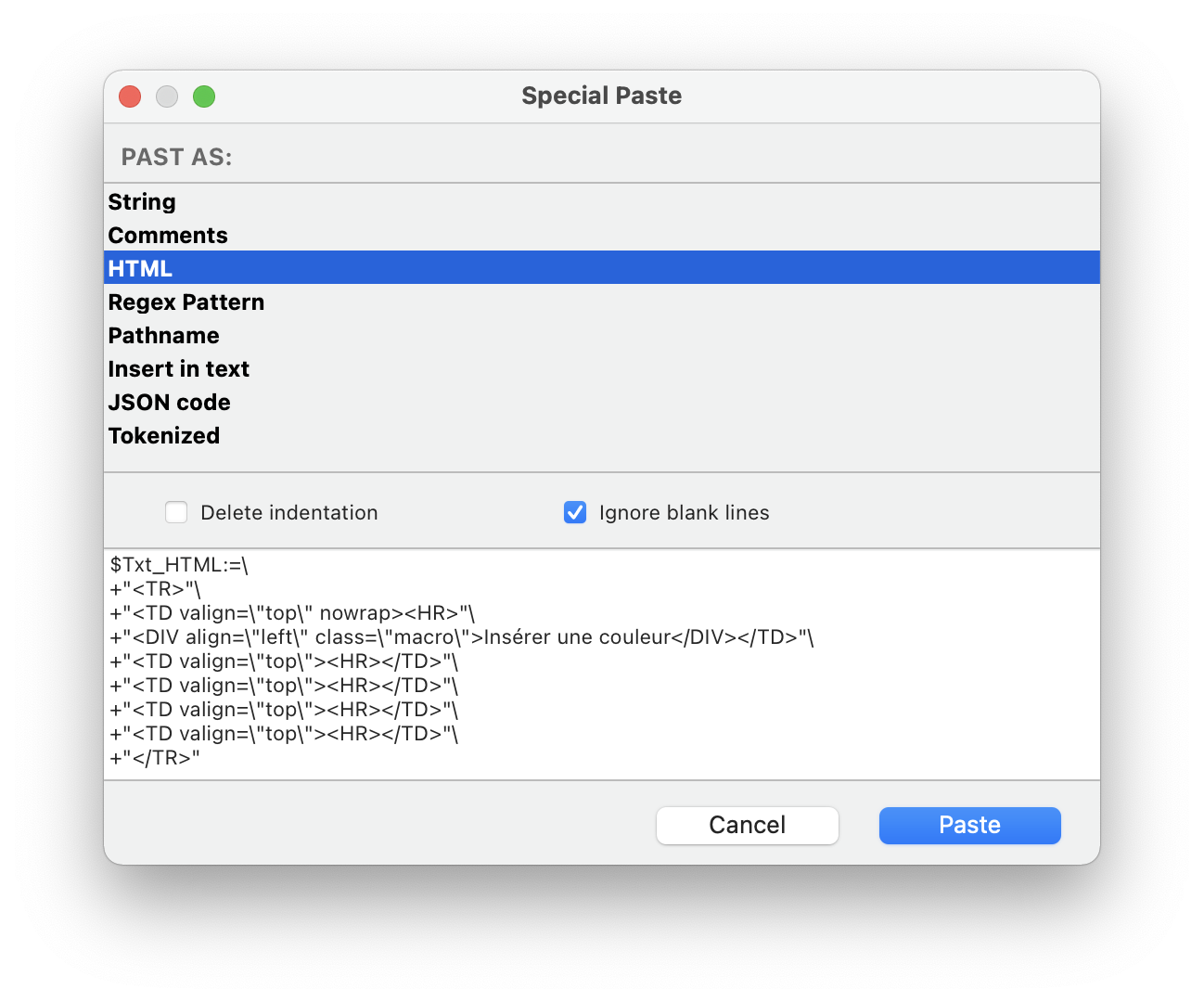

Special paste

The tool displays a dialog allowing to choose what will be pasted in the method editor. The "Result" area allows you to preview the text as it will be pasted.

The available transformations are :

1. String: The text is pasted between quotation marks, the special characters (\r, \n, \t and ") are escaped .
2. Comments: Each line is preceded by a comment mark, the text is not modified.
3. HTML: The html code contained in the clipboard is assigned to a local variable. The characters are escaped.
4. Regex Pattern: The text is pasted between quotation marks. The special characters of the pattern are escaped to be used as such taking into account that the backslash must be escaped in 4D.
5. Pathname: Pastes the path name of a file or folder copied to disk. You can choose the POSIX format instead of the system and choose to use a path relative to the project folder if relevant.
6. Insert in text: Allows you to insert an expression into a string by surrounding the clipboard content with "+ and +". The text thus created replaces the text selected in the string or is inserted at the cursor position.
7. JSON code: Transforms a JSON text into code to create a 4D object
8. Tokenized: Paste code with tokens

Compiler directive…

When the compiler displays warnings to draw your attention to instructions that could lead to runtime errors, you can, after analysis, selectively disable some of them during compilation.

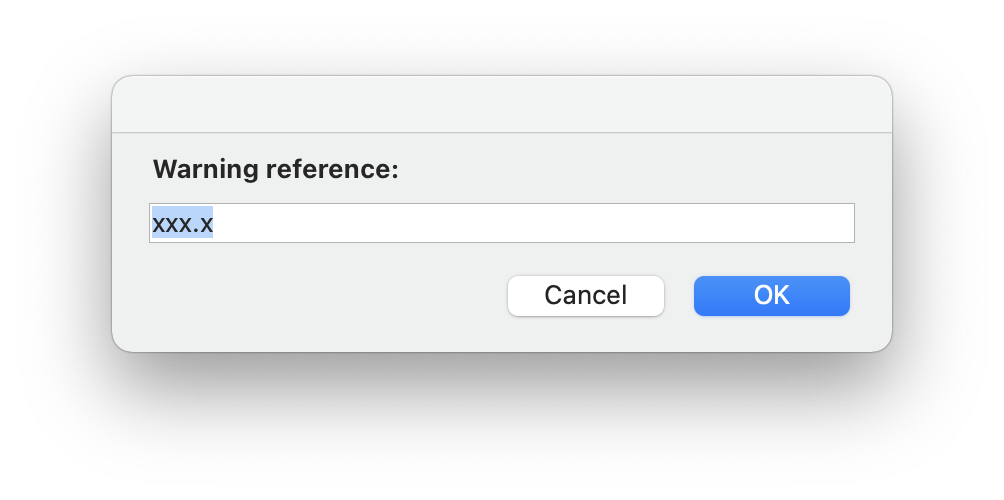

To do this, select the line(s) of code in the method editor that cause this warning and select the "Compiler directive…" action from the macro menu. The tool asks for the number displayed in brackets (e.g. 538.3) and when you validate, surrounds the selected code with the pattern //%W-538.3 ... //%W+538.3.

Comments

If the selected text is already commented, it is uncommented. Otherwise, the macro analyzes the selected text to choose the best commenting method:

• single-line comment:

// CLOSE DOCUMENT($Doc_shortcuts)

• block comment:

/*
	APPEND TO ARRAY($tTxt_attributeName; "editable")
	APPEND TO ARRAY($tTxt_attributeValue; "false")
*/

• intra-line

ON ERR CALL(/*"noERROR"*/"")

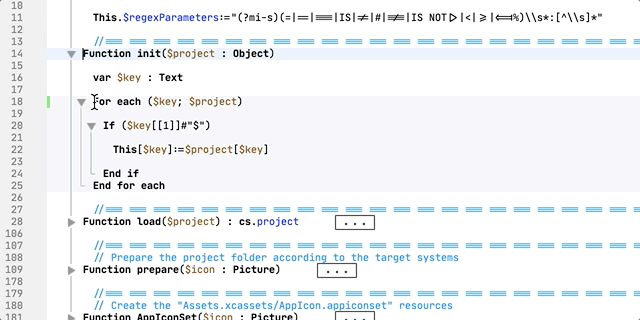

Duplicate & comment

I use it when I want to preserve a piece of code before editing it, but an image is better than text ;-)

Copy with tokens

As the name suggests, the selected code is copied with the tokens.

Replay last macro

Others available macros

Macro test

🚧

Preferences

🚧

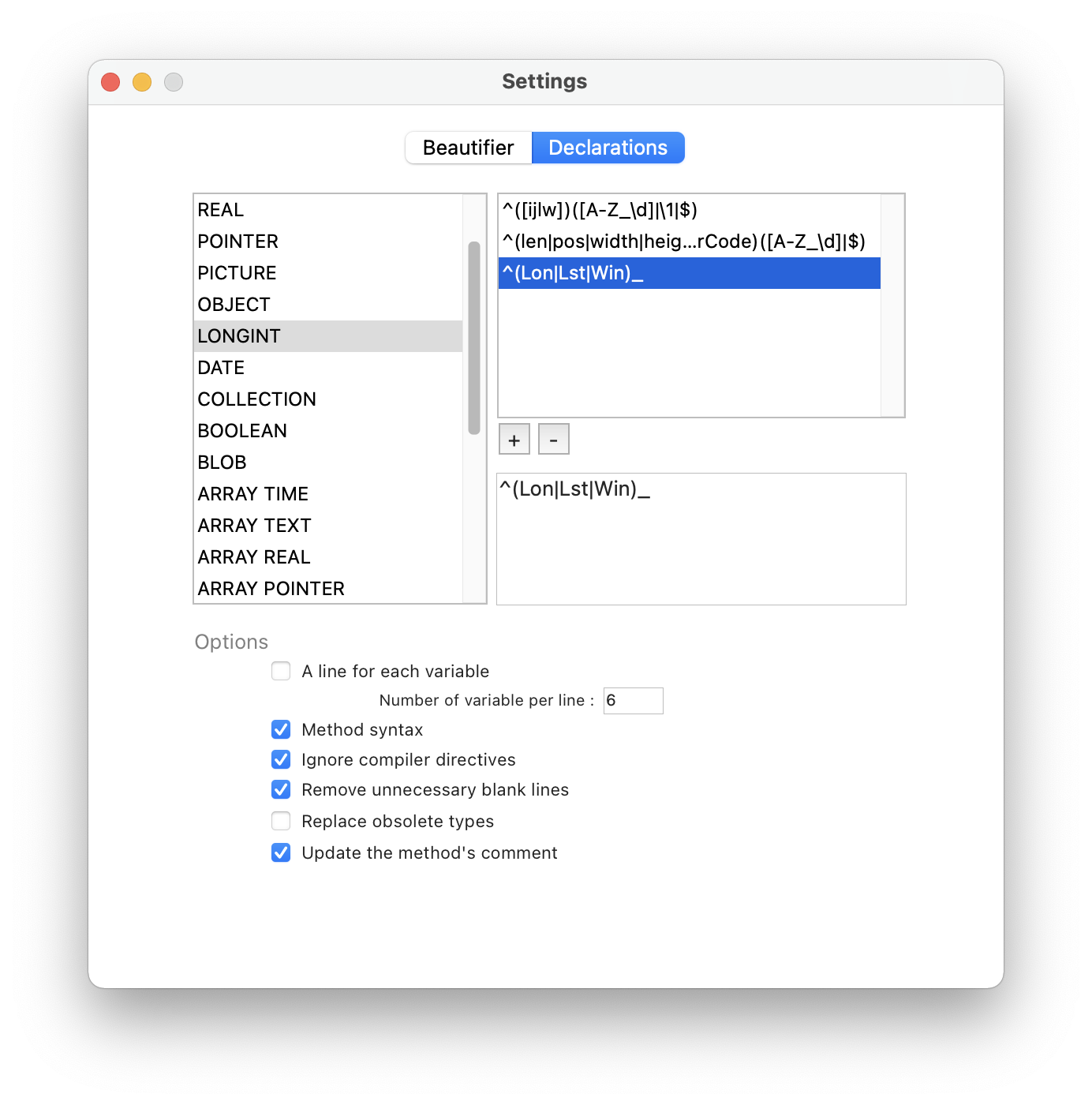

Declaration preferences

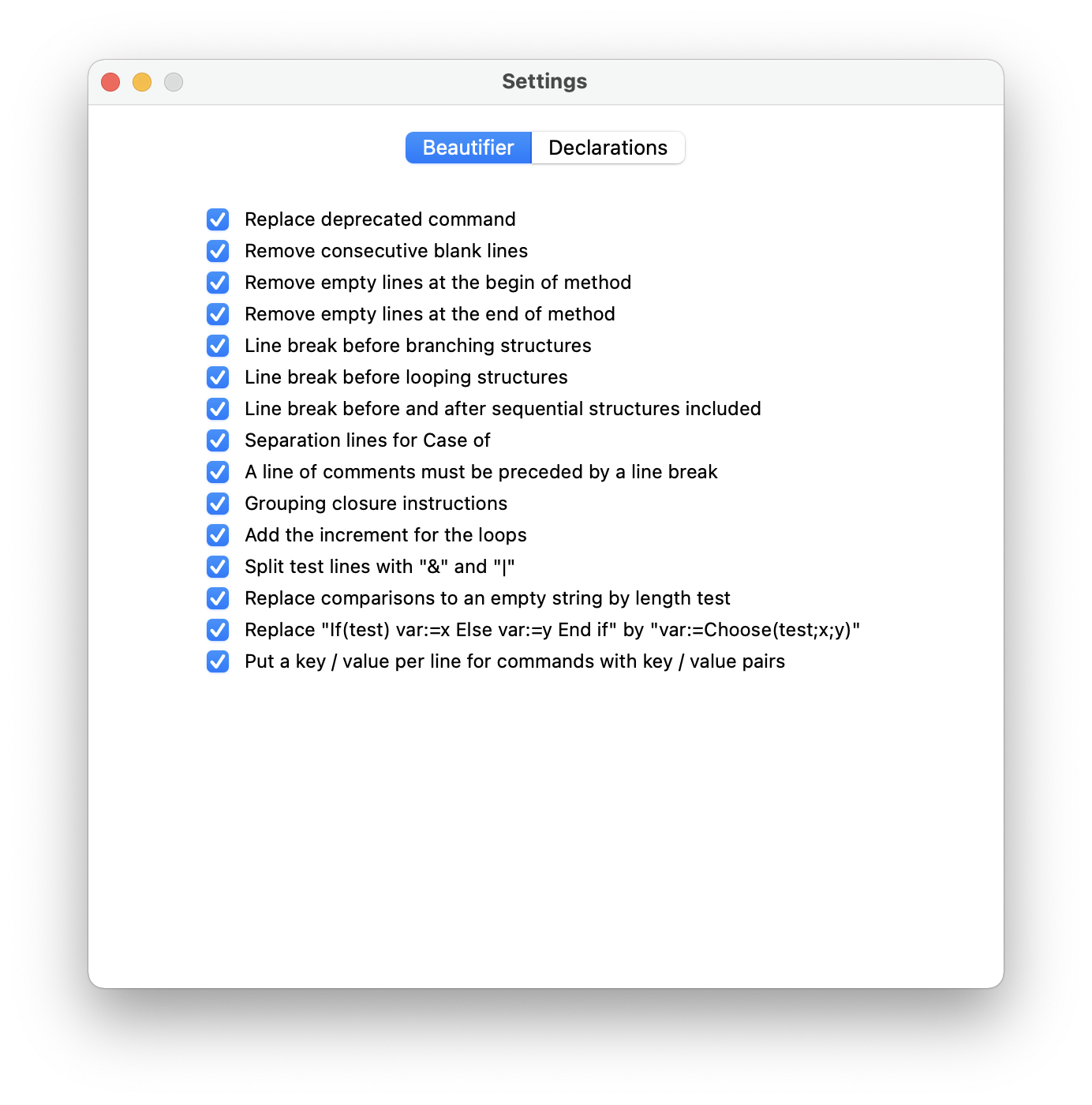

Beautifier preferences

Source code

The component is distributed in compiled form, with source code available in the Sources folder inside the component.
